Troubleshooting Non-Browser Applications
This article explains best practices and troubleshooting steps for configuring Non-Browser applications to function with Umbrella Secure Web Gateway. In most cases no configuration changes are required. However, certain applications do not work well with security/inspection functions (such as SSL Decryption) and exceptions must be added to make the application function with a web proxy; this applies to Umbrella SWG as well as other web proxy solutions.
This is useful in circumstances where the website/browser version of an application works, but the desktop/mobile version of the application does not.
Compatibility Problems
Applications may be incompatible for the following reasons:
|
Umbrella Root CA Installation
|
The Cisco Umbrella Root CA must always be trusted for errorless TLS connections.
|
|
Certificate Pinning
|
Certificate Pinning (PKP) is when the application expects to receive a precise leaf (or CA certificate) to validate the TLS handshake. The application will not accept a certificate generated by a web proxy and is not compatible with SSL Decryption functions.
More details about Applications known to be affected by certificate pinning are available here: Public Key Pinning / Certificate Pinning |
|
TLS Version Support
|
The application may use an older TLS Version / Cipher which is not supported by SWG for security reasons.
|
|
Non-Web Protocol
|
Some applications use non-http(s) protocols but still send this data over common web ports that are intercepted by SWG. SWG will not be able to understand this traffic.
|
|
SAML Authentication
|
Most non-browser applications are unable to perform SAML authentication. Umbrella does not challenge non-browser applications for SAML and therefore User/Group based filtering policies will not match.
|
|
HTTP Range Requests
|
Some applications use HTTP “Byte-Range” requests when downloading data; meaning only a small chunk of the file is downloaded at a time. These requests are disabled for security reasons in SWG because this technique can also be used to bypass Anti-Virus detection
|
|
Explicit Proxy Compatibility |
Some applications do not respect system proxy settings (eg. PAC files) and are generally not compatible with explicit web proxies. These applications do not route through Umbrella SWG in a PAC file deployment.
|
*Warning
Creating these exceptions will disable security inspection functions including Anti-Virus scanning, DLP scanning, Tenant Controls, File Type Control and URL inspection. Only do this if you are happy to trust the source of these files. The business need for the application should be weighed against the security impact of disabling these features/
Microsoft 365 Applications
The Microsoft 365 Compatibility feature automatically excludes a number of Microsoft domains from SSL Decryption and policy enforcement functions. This feature can be enabled to resolve problems with the Desktop version of Microsoft apps. For more information see Manage Global Settings.
Note – The Microsoft 365 Compatibility feature does not exclude all Microsoft domains. We follow Microsoft’s recommendations for the list of domains which should be excluded from filtering. For more information see New Office365 Endpoint Categories.
Certificate Pinning Bypass

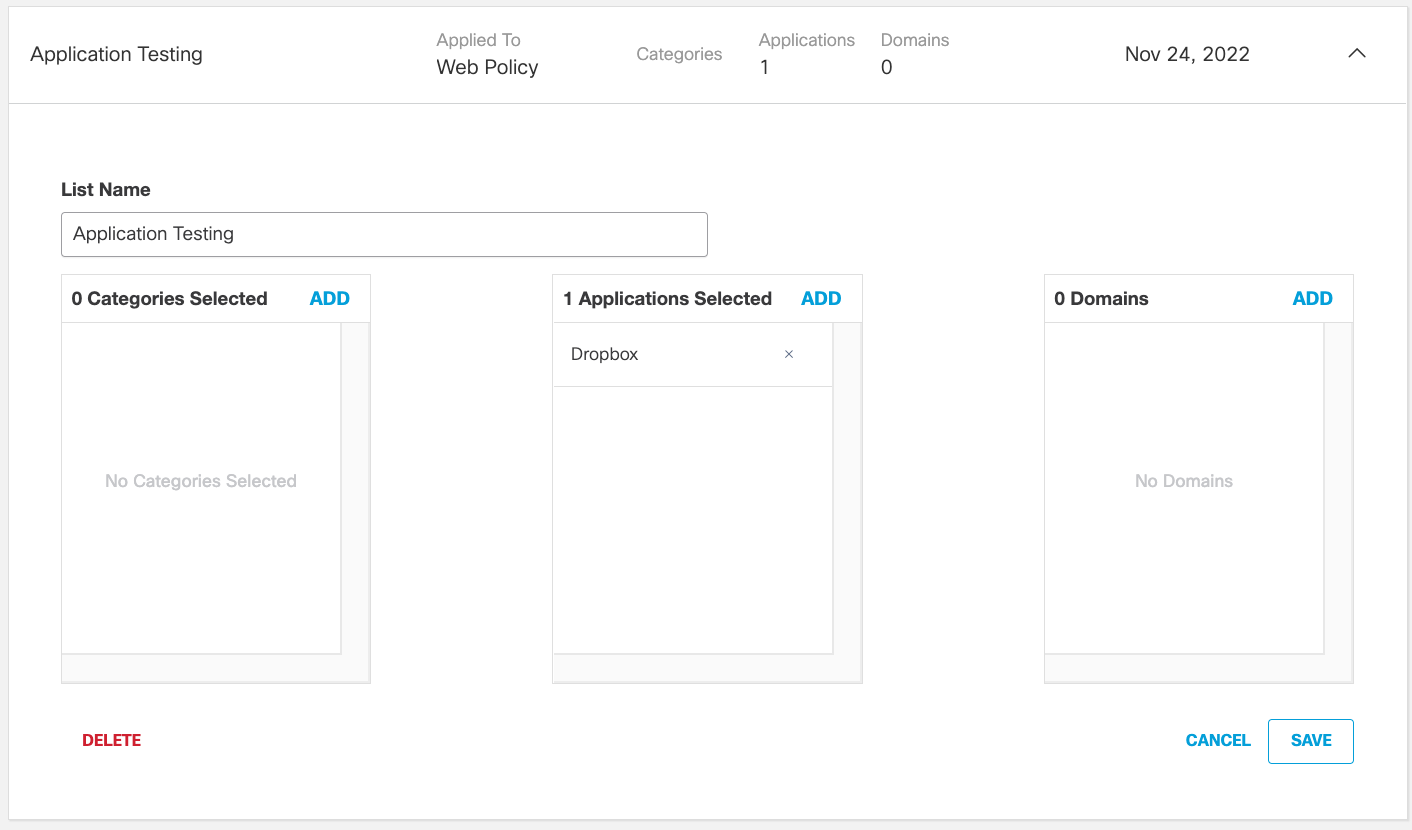

Certificate Pinning (PKP) is a common cause of app compatibility issues. Cisco provide a comprehensive list of named Applications that can be configured to bypass SSL Decryption to workaround. The selective decryption can be configured in ‘Policies > Selective Decryption Lists’
In most cases the administrator can resolve certificate pinning issues simply by excluding the application by its name; meaning these issues can be resolved without having to learn or maintain lists of domains.
Alternatively, applications can be bypassed based on destination domain/IP address. Contact the application vendor to determine the applicable list of domains/IPs or see Identify exclusions for certificate pinning (below).
TLS Compatibility Bypass

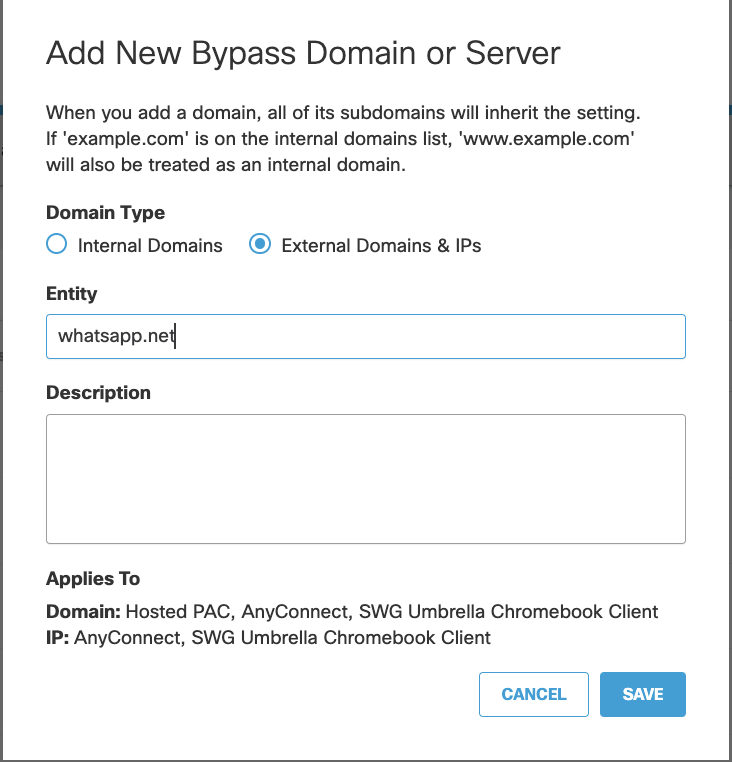

Legacy or custom TLS versions are a common cause of app compatibility issues. These problems can be solved by excluding the traffic from Umbrella in ‘Deployments > Domain Management > External Domains & IPs’ In a tunnel deployment the traffic can only be excluded by adding exceptions in your VPN configuration.
Contact the application vendor to determine the applicable list of domains/IPs to exclude or see Identity exclusions for Incompatible TLS Versions (below).
Troubleshooting (Advanced)
The remaining instructions in this article use Wireshark (www.wireshark.org) packet captures for troubleshooting purposes. Wireshark can help to identify which domains are used by applications for help with implementing custom exclusions. Before starting add the following custom columns in wireshark:
- Download Wireshark from www.wireshark.org

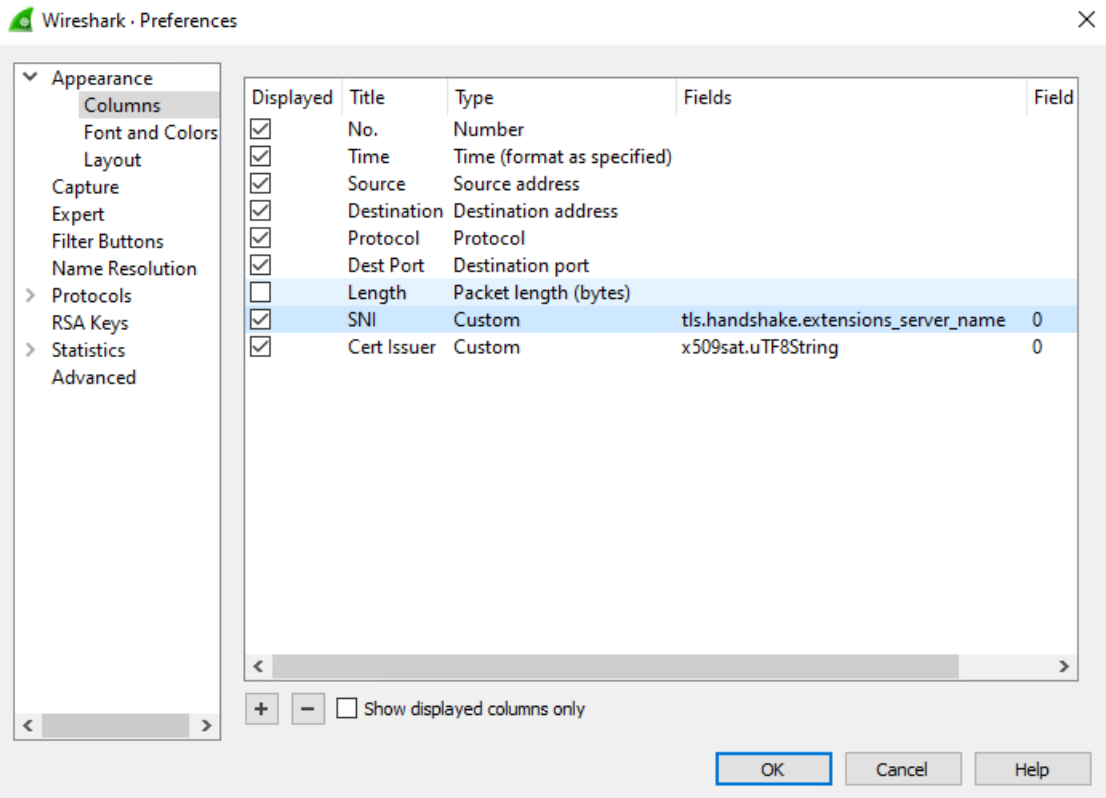

- Go to ‘Edit > Preferences > Columns’
- Create columns of type ‘Custom’ with the following fields:
http.host
tls.handshake.extensions_server_name
x509sat.uTF8String
To perform a packet capture follow the instructions below or see Capture Network Traffic with Wireshark
- Run Wireshark as 'Administrator'
- Select the relevant network interfaces in ‘Capture > Options’
- For PAC / Tunnel Deployments capture on your normal LAN network interface
- For AnyConnect Deployments capture on your LAN network interface AND the loopback interface
- Close down all other applications except the problem application
- Flush your DNS cache: ipconfig /flushdns
- 'Start’ the wireshark capture
- Quickly replicate the issue and 'Stop’ the wireshark capture
Identify exclusions for Certificate Pinning
Certificate pinning is enforced on the client, meaning that the exact behavior and resolution steps differs for every application. In the capture output, look for telltale signs that a TLS connection is failing:
- A TLS connection is being quickly closed or reset (RST or FIN)
- A TLS connection is being repeatedly retried
- The certificate for the TLS connection is being issued by Cisco Umbrella and is therefore being decrypted.
The following example wireshark filters can help to view the important details of TLS connections.
Tunnel / AnyConnect
tcp.port eq 443 && (tls.handshake.extensions_server_name || tls.handshake.certificate || tcp.flags.reset eq 1 || tcp.flags.fin eq 1)
PAC / Proxy Chaining
tcp.port eq 443 && (http.request.method eq CONNECT || tcp.flags.reset eq 1)

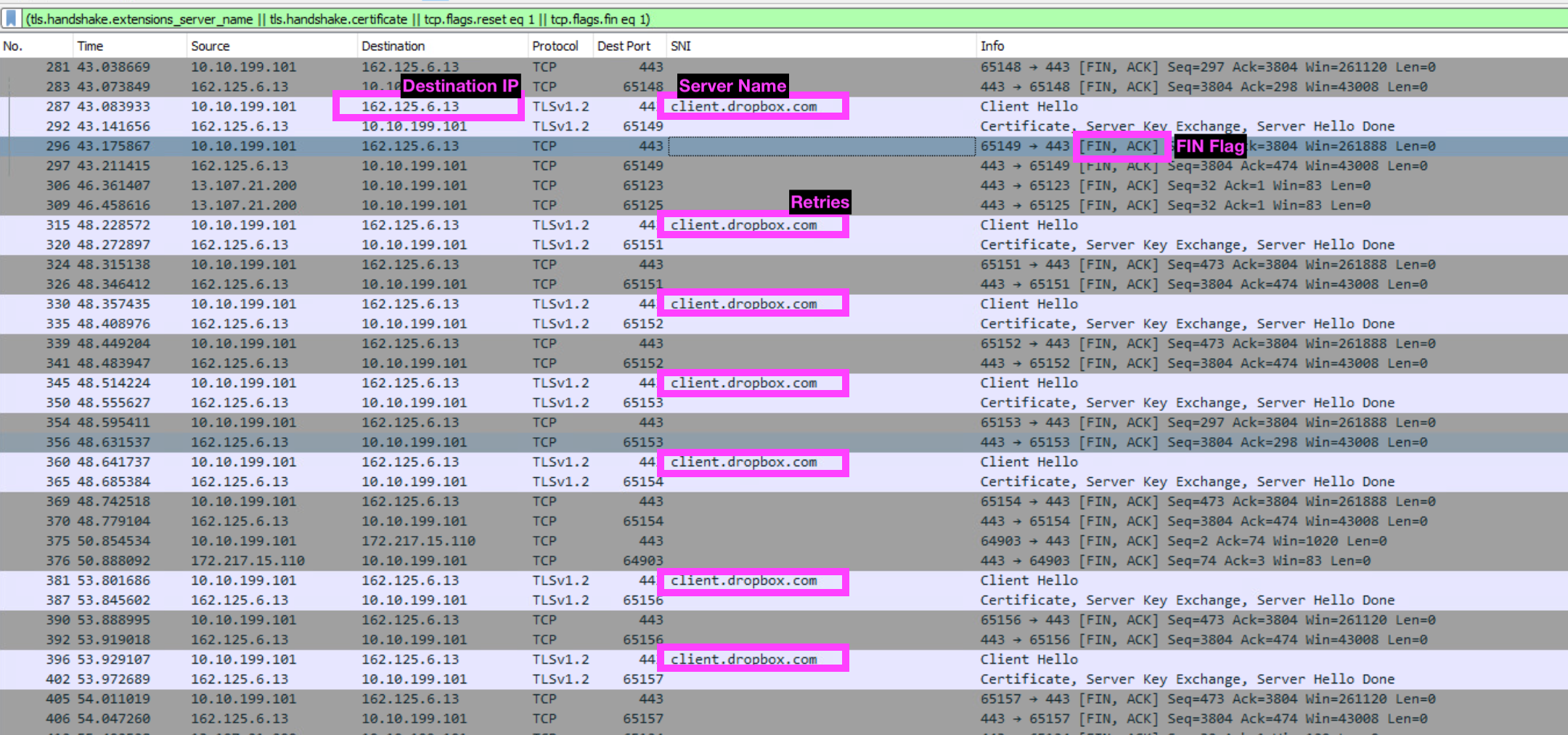

In the following example the DropBox desktop application is affected by certificate pinning when attempting to connect to client.dropbox.com.
Note
After adding the necessary exclusion(s) you may need to repeat these steps multiple times to identify all the destinations used by the application.
Identify exclusions for Incompatible TLS Versions
Look for SSL/TLS connections that do not use the mandatory TLS1.2+ protocols supported by Umbrella SWG. This could include legacy protocols (TLS1.0 or earlier) or bespoke custom-protocols implemented by an application.
The following example filter will show you initial TLS handshake packets along with DNS queries.
Tunnel / AnyConnect
dns || (tls && tcp.seq eq 1 && tcp.ack eq 1)
PAC / Proxy Chaining
dns || http.request.method eq CONNECT

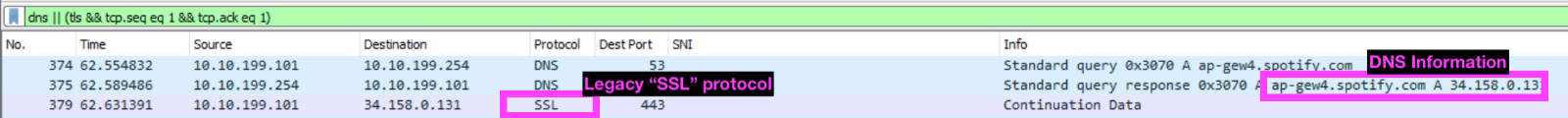

In the following example Spotify desktop application is attempting to connect to ap-gew4.spotify.com using a non-standard or legacy "SSL" protocol which can't be sent via SWG.
Note
After adding the necessary exclusion(s) you may need to repeat these steps multiple times to identify all the destinations used by the application.
