Overview





The Cisco Security Connector (CSC) for iOS is full Umbrella DNS protection for your iPhone. Before using this guide for deployments, please read the CSC deployment documentation. Your device must be in the supervised mode to use the CSC.

This guide overviews additional mobile device management (MDM) software support for the CSC. These MDMs have been validated by a successful deployment but are not yet directly present on the Dashboard.

To verify that a profile exists on an iOS device:

  1. Navigate to Settings > General> Device Management > [MDM Profile Name] > More details
  2. Confirm that the profile type "DNS Proxy" is present along with the following details:
    • App details: com.cisco.ciscosecurity.app
    • Provider bundle details: com.cisco.ciscosecurity.ciscoumbrella

Read more about which iOS profile details to configure on Apple's MDM site.



All MDMs





The following steps apply for deployment to all MDMs and must be completed first:

  1. Ensure your admin email address is added to the dashboard under the Mobile Devices page "Settings" option.
  2. Download the Cisco_Umbrella_Root_CA.cer file for use on the iOS device. This certificate allows for errorless HTTPS block pages. To obtain the Root CA:
    1. Navigate to Deployments > Configuration > Root Certificate.
    2. Select Download Certificate.
    3. Save the download as a .cer file.



MobileIron Cloud





Currently, the MobileIron download on the dashboard only supports the on premise version. The Cloud version uses different device variables than the on premise software. Deployment is very similar to on premise, with several exceptions. MobileIron Core depending on version may or may not require this modification.

To deploy to MobileIron Cloud:

  1. Ensure your admin email address is added to the dashboard under the Mobile Devices page "Settings" option.
  2. Download the Mobile Iron profile from the Umbrella dashboard.
  3. Replace the following variables:
    Generic placeholder variable New variable
    “$DEVICE_SN$” ${deviceSN}
    “$DEVICE_MAC$”* ${deviceWifiMacAddress}

*This is only used for the Clarity component of the CSC, not for the Umbrella component. If you do not use Clarity, there will be no $DEVICE_MAC$ to replace.



Citrix Endpoint Management MDM





To deploy to Citrix, complete the following steps:

Preparation steps in the dashboard:

  1. Ensure your admin email address is added to the dashboard under the Mobile Devices page "Settings" option.
  2. Download the generic MDM configuration from Umbrella (AMP is configured in the same way).
  3. Download the root certificate for Umbrella:
    1. Navigate to Deployments > Configuration > Root Certificate.
    2. Select Download Certificate.
    3. Save the download as a .cer file.
  4. Modify the configuration & replace the generic placeholder with the correct variable for the Citrix MDM:
    Generic placeholder variable New variable
    Serial_Number ${device.serialnumber}
    MAC_Address* ${device.MAC_ADDRESS}

*This is only used for the Clarity component of the CSC, not for the Umbrella component.

MDM steps:

  1. Configure the MDM to install the CSC app using Apple Business Manager (ABM) (formerly known as VPP, Volume Purchase Program).
  2. Upload the Umbrella and/or Clarity configuration modified in the preparation steps above.
  3. Use the steps in the Citrix documentation to import the profile.
  4. Upload the certificate for the device to trust the Umbrella Root Certificate Authority.
  5. Configure the policies to push the profiles, 1 CA, and the 1 CSC app to the required device(s).



Lightspeed MDM





Lightspeed MDM supports text-based configuration of the iOS DNS proxy. This can be accomplished by modifying the generic MDM profile.

  1. Download the “generic mobileconfig file” and change the file extension from .xml to .txt.
  2. Open the file and change the placeholder serial number string on line 58 to %serial_number%

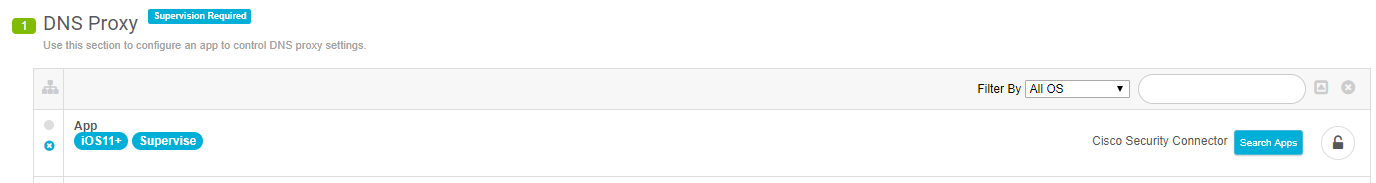

  3. In Lightspeed, add the Cisco Security Connection to the DNS Proxy Profile as shown below
    Cisco Security Connection added to DNS Proxy Profile.

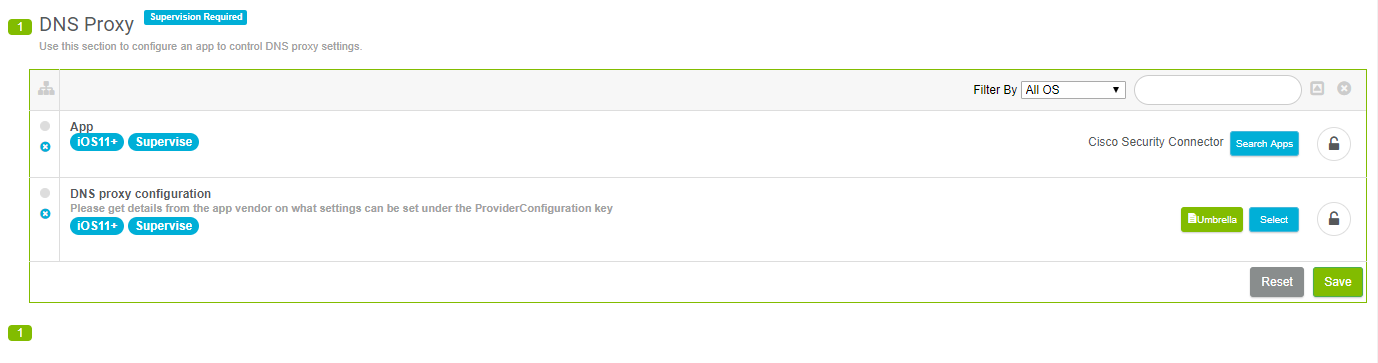

  4. Add the modified generic mobileconfig file to the DNS proxy configuration option underneath the app.DNS proxy configuration with mobileconfig file.

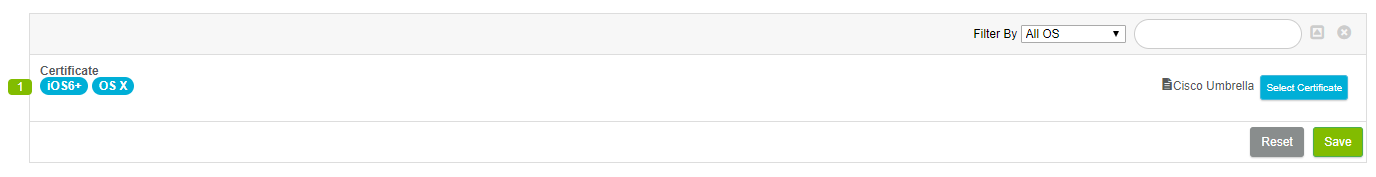

  5. Finally, download the Cisco Root CA from Umbrella and deploy it in Lightspeed to ensure certificate-free block pages.Root certificate from Umbrella uploaded in Lightspeed

The following steps apply for deployment to all MDMs. Please follow these steps first.



JAMF Schools





Deploying CSC with JAMF Schools differs from JAMF. Start with the generic profile and see the steps in the JAMF documentation.

Below is an example configuration of where to select and which variable to use for the serial number:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>PayloadContent</key>
	<dict>
		<key>AppBundleIdentifier</key>
		<string>com.cisco.ciscosecurity.app</string>
		<key>PayloadDescription</key>
		<string>Cisco Umbrella</string>
		<key>PayloadDisplayName</key>
		<string>Cisco Umbrella</string>
		<key>PayloadIdentifier</key>
		<string>com.apple.dnsProxy.managed.{pre-filled in the download}</string>
		<key>PayloadType</key>
		<string>com.apple.dnsProxy.managed</string>
		<key>PayloadUUID</key>
		<string>{pre-filled in the download}</string>
		<key>PayloadVersion</key>
		<integer>1</integer>
		<key>ProviderBundleIdentifier</key>
		<string>com.cisco.ciscosecurity.app.CiscoUmbrella</string>
		<key>ProviderConfiguration</key>
	</dict>
	<array>
		<dict>
			<key>disabled</key>
			<false/>
			<!-- Copy from here to paste into the Jamf School UI to provision a DNS proxy -->
			 <dict>
				 <key>disabled</key>
				 <false/>
				 <key>internalDomains</key>
				 <array>
					 <string>10.in-addr.arpa</string>
					 <string>16.172.in-addr.arpa</string>
					 <string>17.172.in-addr.arpa</string>
					 <string>18.172.in-addr.arpa</string>
					 <string>19.172.in-addr.arpa</string>
					 <string>20.172.in-addr.arpa</string>
					 <string>21.172.in-addr.arpa</string>
					 <string>22.172.in-addr.arpa</string>
					 <string>23.172.in-addr.arpa</string>
					 <string>24.172.in-addr.arpa</string>
					 <string>25.172.in-addr.arpa</string>
					 <string>26.172.in-addr.arpa</string>
					 <string>27.172.in-addr.arpa</string>
					 <string>28.172.in-addr.arpa</string>
					 <string>29.172.in-addr.arpa</string>
					 <string>30.172.in-addr.arpa</string>
					 <string>31.172.in-addr.arpa</string>
					 <string>168.192.in-addr.arpa</string>
					 <string>local</string>
				 </array>
				 <key>logLevel</key>
				 <string>verbose</string>
				 <key>orgAdminAddress</key>
				 <string>{pre-filled in the download}</string>
				 <key>organizationId</key>
				 <string>{pre-filled in the download}</string>
				 <key>regToken</key>
				 <string>{pre-filled in the download}</string>
				 <key>serialNumber</key>
				 <string>%SerialNumber%</string>
			 </dict>
			<!-- End copy -->
		</dict>
	</array>
	<key>PayloadDisplayName</key>
	<string>Cisco Security</string>
	<key>PayloadIdentifier</key>
	<string>com.cisco.ciscosecurity.app.CiscoUmbrella.{pre-filled in the download}</string>
	<key>PayloadRemovalDisallowed</key>
	<false/>
	<key>PayloadType</key>
	<string>Configuration</string>
	<key>PayloadUUID</key>
	<string>{pre-filled in the download}</string>
	<key>PayloadVersion</key>
	<integer>1</integer>
</dict>
</plist>
  1. Create a new profile in JAMF School.
    For more information, see the JAMF documentation on Device Profiles.
  2. Use the DNS Proxy payload to configure the following settings:

    1. In the App Bundle ID field, enter com.cisco.ciscosecurity.app.

    2. In the Provider Bundle ID field, enter com.cisco.ciscosecurity.app.CiscoUmbrella.

  3. Add the XML file you created in step 2 of the JAMF documentation to the Provider Configuration.



JAMF below 10.2.0





Deploying the CSC with JAMF requires significant profile modification. Follow the steps below to deploy the CSC with JAMF MDM.

  1. Ensure your admin email address is added to the dashboard under the Mobile Devices page "Settings" option.
  2. Add the Umbrella root CA:
    1. Navigate to Deployments > Configuration > Root Certificate.
    2. Select Download Certificate.
    3. Save the download as a .cer file.
    4. Provide a name for the certificate and select Upload Certificate.
    5. Upload the .cer from above and leave the password field blank.
    6. Apply to the scope of your devices to push out this certificate.
  3. Download the generic profile from the Umbrella dashboard.
  4. If you are using JAMF Pro v.10.2.0 or higher, you can skip this step. You may import as-is by adding the following:
    <key>serialNumber</key>
    <string>$SERIALNUMBER</string>
    <key>label</key>
    <string>$DEVICENAME</string>
  5. If you are using a JAMF version below v.10.2.0, edit the XML profile extensively as follows in this example profile. Do not copy this example, it is not functional as-is. Only use the generic download configuration from your dashboard.

    <?xml version="1.0" encoding="UTF-8"?>
    <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
    <plist version="1.0">
    <dict>
    <key>PayloadContent</key>
    <array>
    <dict>
    <key>AppBundleIdentifier</key>
    <string>com.cisco.ciscosecurity.app</string>
    <key>PayloadDescription</key>
    <string>Cisco Umbrella</string>
    <key>PayloadDisplayName</key>
    <string>Cisco Umbrella</string>
    <key>PayloadIdentifier</key>
    <string>com.apple.dnsProxy.managed.DBE2A157-E134-3E8C-B4FB-23EDF48A0CD1</string>
    <key>PayloadType</key>
    <string>com.apple.dnsProxy.managed</string>
    <key>PayloadUUID</key>
    <string>59401AAF-CDBF-4FD7-9250-443A58EAD706</string>
    <key>PayloadVersion</key>
    <integer>1</integer>
    <key>ProviderBundleIdentifier</key>
    <string>com.cisco.ciscosecurity.app.CiscoUmbrella</string>
    <key>ProviderConfiguration</key>
    <dict>
    <key>disabled</key>
    <false/>
    <key>internalDomains</key>
    <array>
    <string>10.in-addr.arpa</string>
    <string>16.172.in-addr.arpa</string>
    <string>17.172.in-addr.arpa</string>
    <string>18.172.in-addr.arpa</string>
    <string>19.172.in-addr.arpa</string>
    <string>20.172.in-addr.arpa</string>
    <string>21.172.in-addr.arpa</string>
    <string>22.172.in-addr.arpa</string>
    <string>23.172.in-addr.arpa</string>
    <string>24.172.in-addr.arpa</string>
    <string>25.172.in-addr.arpa</string>
    <string>26.172.in-addr.arpa</string>
    <string>27.172.in-addr.arpa</string>
    <string>28.172.in-addr.arpa</string>
    <string>29.172.in-addr.arpa</string>
    <string>30.172.in-addr.arpa</string>
    <string>31.172.in-addr.arpa</string>
    <string>168.192.in-addr.arpa</string>
    <string>local</string>
    <string>cisco.com</string>
    </array>
    <key>logLevel</key>
    <string>{pre-filled in the download}</string>
    <key>orgAdminAddress</key>
    <string>{pre-filled in the download}</string>
    <key>organizationId</key>
    <string>{pre-filled in the download}</string>
    <key>regToken</key>
    <string>{pre-filled in the download}</string>
    <key>serialNumber</key>
    <string>$SERIALNUMBER</string>
    <key>label</key>
    <string>$DEVICENAME</string>
    </dict>
    </dict>
    </array>
    <key>PayloadDisplayName</key>
    <string>Cisco Security</string>
    <key>PayloadIdentifier</key>
    <string>com.cisco.ciscosecurity.app.CiscoUmbrella.{pre-filled in the download}</string>
    <key>PayloadRemovalDisallowed</key>
    <false/>
    <key>PayloadType</key>
    <string>Configuration</string>
    <key>PayloadUUID</key>
    <string>{pre-filled in the download}</string>
    <key>PayloadVersion</key>
    <integer>{pre-filled in the download}</integer>
    </dict>
    </plist>
  6. Import to JAMF:
    1. Under the main MDM configuration window, click New to create a new profile.
      Note: This must be a separate profile and must not be used with the certificate profile created above. For the app to work, these two profiles must be pushed to the device separately.
    2. Name the profile and navigate to DNS Proxy.
    3. Under the DNS proxy, click Configure.
    4. Set the proxy configuration to Umbrella details:

      1. In the App Bundle ID field, enter com.cisco.ciscosecurity.app.

      2. In the Provider Bundle ID field, enter
        com.cisco.ciscosecurity.app.CiscoUmbrella.

      3. Paste the edited XML content from Umbrella
        into the Provider Configuration
        XML section.

    5. Click Scope and apply to the proper scope of devices.



InTune





InTune is directly added to the Umbrella dashboard. Please review the Umbrella InTune documentation for more information.

Note: Clarity is a product of Cisco AMP for Endpoints. If you are not currently licensed for this product, please skip the related setup portion.



Mosyle





Mosyle support is in the form of the DNS Proxy configuration:

  • In the App Bundle ID field, enter com.cisco.ciscosecurity.app.

  • In the Provider Bundle ID field, enter
    com.cisco.ciscosecurity.app.CiscoUmbrella.

Add the content within the XML <key>ProviderConfiguration</key> to the Mosyle Provider Configuration field:

<dict>
<key>anonymizationLevel</key>
<integer>0</integer>
***
<key>serialNumber</key>
<string>%SerialNumber%</string>
</dict>

Note: The settings require the devices to be scoped to receive the configuration, and scopes are not added by default.



Securly





Configure Securly on the DNS Proxy profile page:

  • In the App Bundle ID field, enter com.cisco.ciscosecurity.app
  • In the Provider Bundle IDfield, enter  com.cisco.ciscosecurity.app.CiscoUmbrella

Use the following steps to configure the .plist file:

  1. Start with the iOS Common Config template and edit the file into a .plist with only the <dict> through </dict> inside the <key>ProviderConfiguration</key> comments.
  2. Replace the serialNumber key with the $serialnumber variable as defined by Securly.
  3. The .plist file content should look very similar to the example below. Upload this to the DNS Proxy configuration:
<plist version="1.0">
<dict>
<key>anonymizationLevel</key>
<integer>0</integer>
<key>disabled</key>
<false/>
<key>internalDomains</key>
<array>
<string>10.in-addr.arpa</string>
<string>16.172.in-addr.arpa</string>
<string>17.172.in-addr.arpa</string>
<string>18.172.in-addr.arpa</string>
<string>19.172.in-addr.arpa</string>
<string>20.172.in-addr.arpa</string>
<string>21.172.in-addr.arpa</string>
<string>22.172.in-addr.arpa</string>
<string>23.172.in-addr.arpa</string>
<string>24.172.in-addr.arpa</string>
<string>25.172.in-addr.arpa</string>
<string>26.172.in-addr.arpa</string>
<string>27.172.in-addr.arpa</string>
<string>28.172.in-addr.arpa</string>
<string>29.172.in-addr.arpa</string>
<string>30.172.in-addr.arpa</string>
<string>31.172.in-addr.arpa</string>
<string>168.192.in-addr.arpa</string>
<string>local</string>
</array>
<key>logLevel</key>
<string>{pre-filled in the download}</string>
<key>orgAdminAddress</key>
<string>{pre-filled in the download}</string>
<key>organizationId</key>
<string>{pre-filled in the download}</string>
<key>regToken</key>
<string>{pre-filled in the download}</string>
<key>serialNumber</key>
<string>$serialnumber</string>
</dict>
</plist>

Was this article helpful?

3 out of 5 found this helpful
Have more questions? Submit a request

Related articles
