Issue

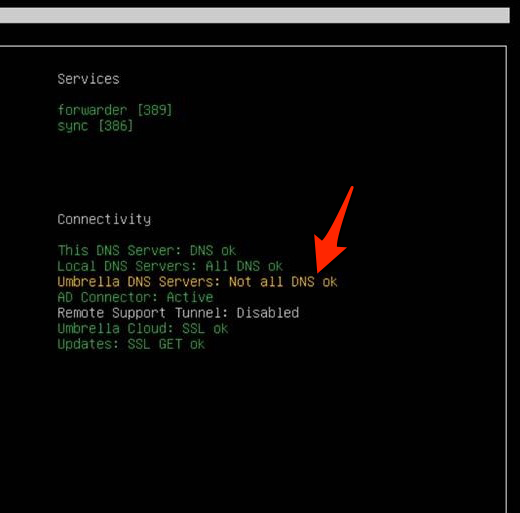

You've successfully set up your Virtual Appliances and arranged your local DNS resolvers, and all seems operational. However, you then notice a yellow "Not All DNS Okay" or a red "All DNS Fail" alert displayed in the Virtual Appliance console.
Cause
"Not All DNS Okay" is normally caused by something blocking the communication going from the VA to Umbrella. The block is often caused by a firewall or security appliance stopping the DNS query on Port 53 from getting to one of the four required IP addresses of our resolvers:
- 208.67.220.220
- 208.67.222.222
- 208.67.220.222
- 208.67.222.220

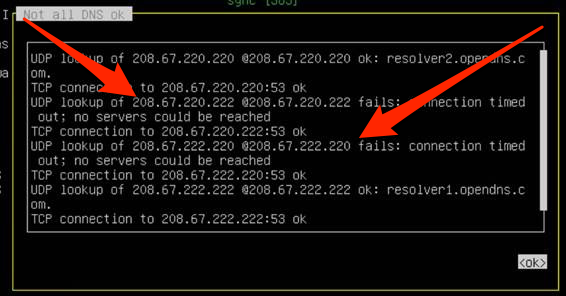

In order to see which of these might be being blocked, tab over the error message. This will open the expanded message with additional details:
In this case, UDP lookup on port 53 failed to connect to 208.67.220.222 and 208.67.222.220.
Resolution
- Check to see which of the 4 Umbrella Resolvers aren’t being reached. Check your Firewall to see if that IP address has been allowed.
- If any are missing, add them and see if the error message goes away. If it doesn’t contact Umbrella Support at umbrella-support@cisco.com
- Check the Virtual Appliance Prerequisites and make sure that they are all being met.
If you have checked all the prerequisites listed in our Documentation, added the missing IP addresses (if any), and you are still seeing this issue, please open the On Demand Support Tunnel on the VA in question and reach out to the Umbrella Support team (umbrella-support@cisco.com).
