Overview
This Knowledgebase article applies to customers using Cisco Plus Secure Connect package which includes Remote Access (VPNaaS) functionality in Umbrella.
Administrators can configure Umbrella Firewall, Web, and Data Loss policies to apply to roaming users connected to Remote Access via Cisco AnyConnect.
DNS Policies

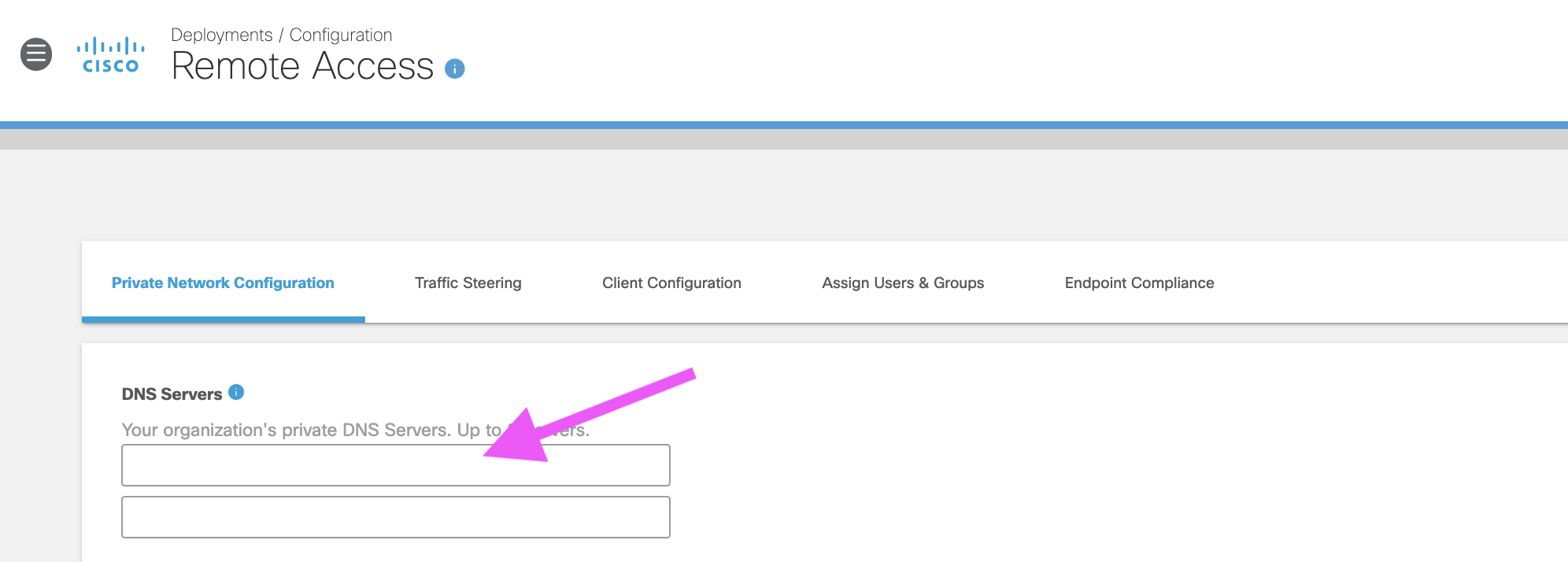

It is possible to send DNS queries to Umbrella resolvers (eg. 208.67.222.222) via the AnyConnect Remote Access VPN connection. However, this will not enable identification, policy, or reporting of DNS traffic on the Umbrella dashboard.
- This provides DNS resolution only and therefore is not typically recommended.
- Using external DNS resolvers in your VPN DNS configuration will prevent resolution of internal DNS Zones.
To add identity, policy, and reorting for DNS queries, one of three methods should be considered:
- (Recommended) - Deploy the Umbrella AnyConnect Roaming module (from Deployments > Roaming Computers). External DNS traffic is sent directly to Umbrella with "Roaming Computer" identity applied. This module also supports optional AD user identification.
- Forward traffic from your on-premise DNS server to Umbrella and identify traffic using a Network identity. All users will receive the same policy/identity and there will be no granular user reporting.
- Use an Umbrella Virtual Appliance on your on-premise network to forward traffic to Umbrella. DNS queries can be identified by their internal (VPN pool IP address). AD integration can be added - requires installation of additional on-premise components.

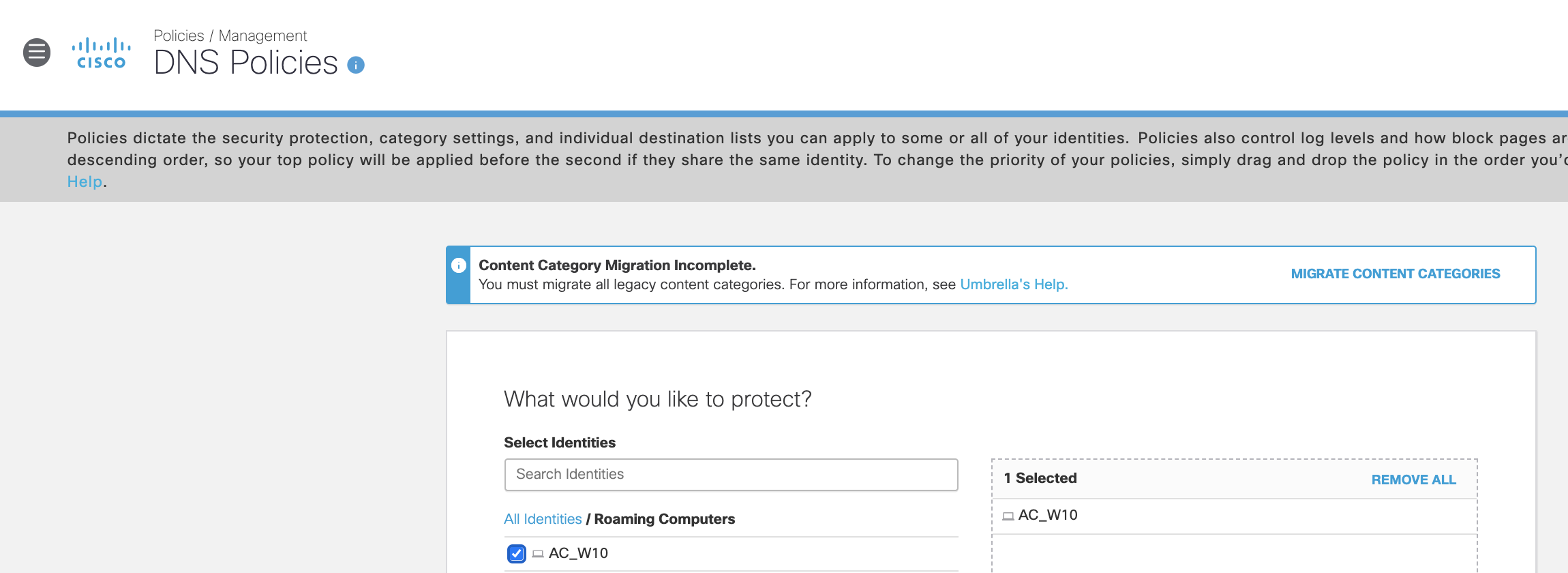

The example below shows how a DNS Policy can be configured (Policies > DNS Policies) for an individual AnyConnect client - this is only possible when the Umbrella AnyConnect Roaming Module is deployed:
Note:
When using the Umbrella module for AnyConnect, DNS traffic can optionally be sent inside or outside the tunnel depending on your split tunneling configuration.
Firewall Policies
Firewall policies apply to traffic between the Remote Access (AnyConnect) clients and the internet. Configure rules in 'Deployments > Firewall Policy' as per documentation found here: Manage Firewall.

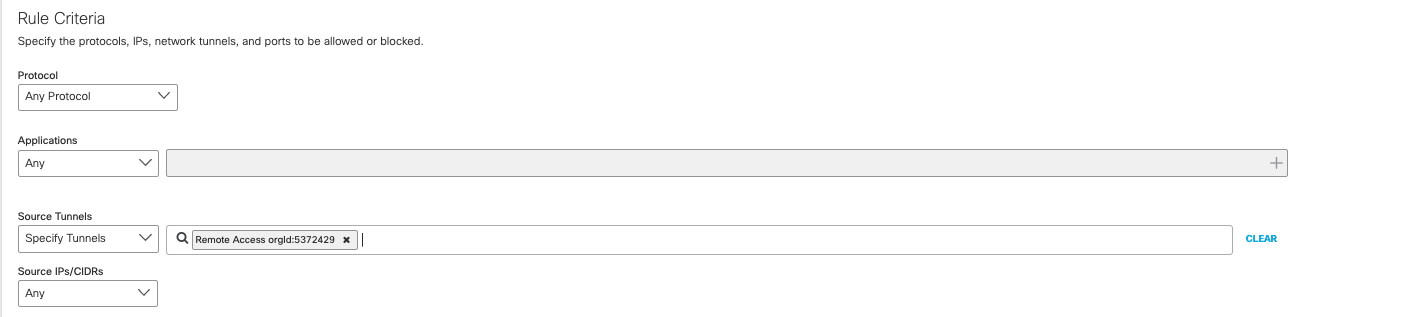

The default firewall rule will apply to Remote Access clients. If you are creating a specific policy for Remote Access users, you can optionally choose to create a new firewall policy and select "Remote Access orgid:<ID>" as the source tunnel identity.
The same Firewall Policy will apply to all remote access users.
- Firewall policies are not used to control access between RA clients and Private/Branch networks. This must be controlled with on-premise firewalls.
- Like all Umbrella firewall rules, these rules control outbound connections for Remote Access clients. Inbound connections are never allowed.
-
The source IP address for Remote Access clients is always dynamically assigned from the VPN pool.
- Creating rules for a specific computer using "Source IP" is not recommended as the IP will be dynamically re-assigned
- Creating rules affecting users of a specific Remote Access data center is possible by using a "Source CIDR" range. Each data center provides a different VPN pool range which is configured on the 'Deployments > Remote Access' page.
Note:
Per User identification is not available for firewall policies
Web Policies
Web policies apply to traffic between the Remote Access (AnyConnect) clients and the internet. Configure rules in 'Deployments > Web Policies' as per documentation found here: Manage Web Policies.
- Web policies are not used to control access between RA clients and Private/Branch webservers. Web policies only apply to external websites.

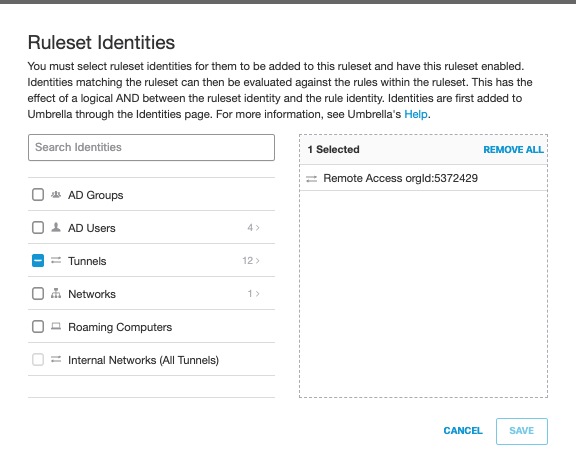

The default web policy will apply to Remote Access clients. However, we recommend creating a new ruleset to define security settings specifically for Remote Access clients. When defining the Ruleset identities choose Remote Access orgid:<ID> from the list of tunnels. The same Web Policy will apply to all remote access users.

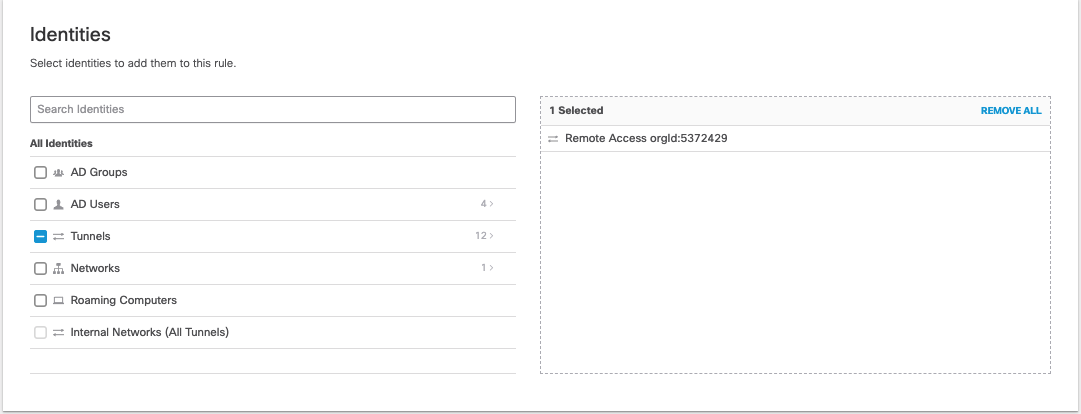

After creating a ruleset it is possible to add a web rule to which defines Content Category Filtering and application settings.
Web User Identification
By default, Remote Access traffic cannot be controlled on a per-user or group basis. The same policy applies to all RA traffic based on the above "Remote Access orgid" identity. To add user/group identification you have two options...
- Install our AnyConnect Umbrella Roaming Security module and enable the SWG agent feature. The agent sends web traffic directly to Umbrella SWG with "Roaming Computer" identity applied. This module also supports optional AD user identification.
- Enable SAML in the web ruleset that affects your "Remote Access orgid" identity. After connecting to remote access, RA users will be prompted to authenticate via SAML a second time when generating web browser traffic.
Note:
When using the Umbrella module for AnyConnect, SWG traffic can optionally be sent inside or outside the tunnel depending on your split tunneling configuration.
The example below shows how a DNS Policy can be configured (Policies > DNS Policies) for an individual AnyConnect client - this is only possible when the Umbrella AnyConnect Roaming Module is deployed:
DLP Policies
Data Loss policies apply to traffic between the Remote Access (AnyConnect) clients and the internet. Configure rules in 'Deployments > Data Loss Prevention Policies' as per documentation found here: Manage Data Protection Policies.
- DLP policies are not used to control access between RA clients and Private/Branch webservers. DLP policies only apply to traffic external websites.
Note:
In order for DLP policies to apply you first must have created a Web Ruleset for Remote Access users. The web ruleset must have HTTPS Decryption Enabled.
DLP User Identification
DLP gets user identity from the secure web gateway (Web policies). Refer to the Web policies section above for instructions on how to add user identification.
